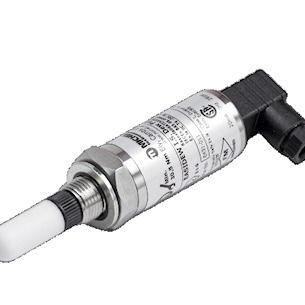

Dew Point Transmitter - Michell Easidew PRO I.S
Measurement of intrinsically safe dew point in hazardous areas
feature
Measurement range -110 to+20 ° Cdp
ATEX, IECEx, cCSAus, FM, TC TR Ex certification
Accuracy ± 1 ° Cdp
2-wire 4-20 mA output
Traceable to 13 point verification certificates
450 barg pressure rating
Optional process connections
BS EN 10204 3.1 Material Certification
Humidity in gases and liquids
Service Exchange Plan
Oxygen cleaning
The intrinsic safety Easidew PRO I.S. dew point transmitter measures the humidity of gases or non-polar liquids in harsh processes or refining applications.
Wide measurement range -110 to+20 ° Cdp, easy to integrate into existing systems. A sturdy casing can protect electronic devices from harsh environments.
Using a Michell metal oxide ceramic humidity sensor, Easidew PRO I.S. measures long-term stability and rapid response to humidity changes. With a large production capacity, Easew PRO I.S. is suitable for OEMs and system integrators with short and continuous delivery times.
highlight
• Transmitters certified by IECEx, CSA, FM, ATEX for hazardous areas
5/8 "UNF, G1/2" BSP or 3/4 "UNF process connection
Dew point or ppmV humidity display
Two wire power supply circuit connection
• Sturdy 316 stainless steel casing, protection level IP66
• Range -100~+20 ° C
Accuracy ± 2 ° Cdp
• Verification Certificate (NPL, NIST)
|
|
